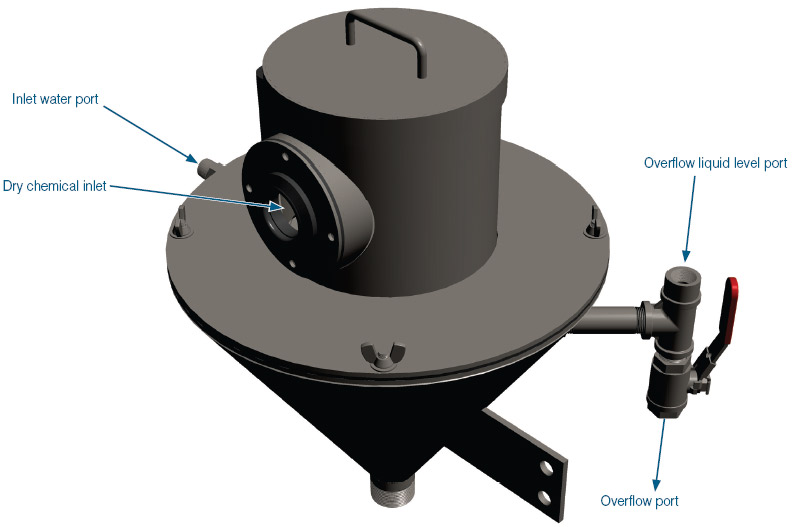

Wetting Cone - WCC

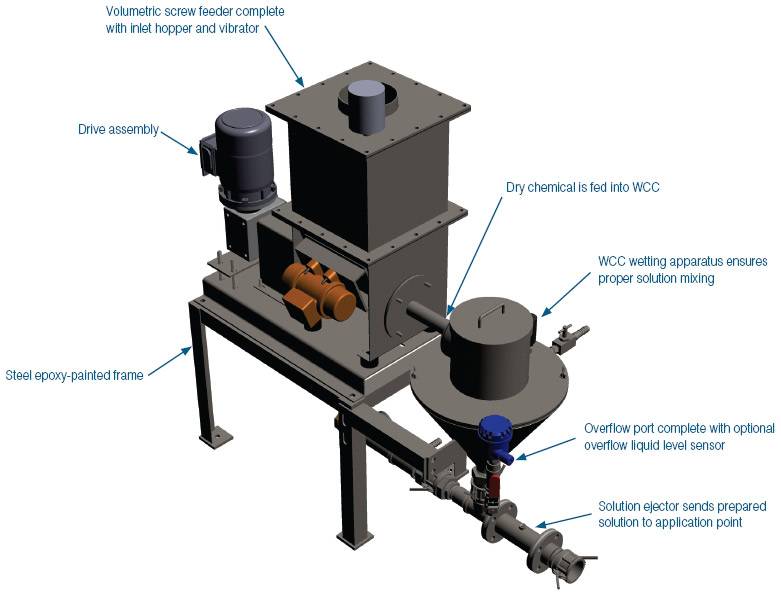

The CON-V-AIR Solutions Wetting Cone applies a basic, timeproven method of introducing dry product into solution. Dry chemical is metered into the wetting cone where it is mixed with incoming water to produce the wanted solution concentration. Water is introduced via the wetting ring, which circles the perimeter of the cone, and flows down the walls of the cone and into its base where it blends with the dry chemicals. This shower of water ensures that the cone itself remains clean while the vortex, created at the base, ensures proper solution mixing. A top cover allows the operators to quickly and easily inspect the inside of the cone should the need be. Equipped with an overflow port, the wetting cone can easily be mounted with an optional overflow protection sensor to shut off inled feed water in the event of a downstream line blockage.

Characteristics

  • Stainless steel construction
  • Stainless steel wetting ring
  • "Easy-Off" top cover for easy inspection
  • No solution volume accumulation
  • Overflow port
  • Solution ejector
  • Wetting ring inlet water brass throttling valve

Options

  • Overflow liquid level sensor
  • FLEXTURI anti-clogging liquid ejector

Process Capability and Requirements

  • Dry Feed Inlet (Dim "A"): ø 1/2" to 2"
  • Solution Concentration: Up to 7%
  • Dry Chemical Feed Rate: Up to 10 kg/min
  • Water Inlet Port: 1/2" MNPT
  • Water Requirement: 30 L/min

Documents

Wetting Cone

Flexturi - Lime Pumping System

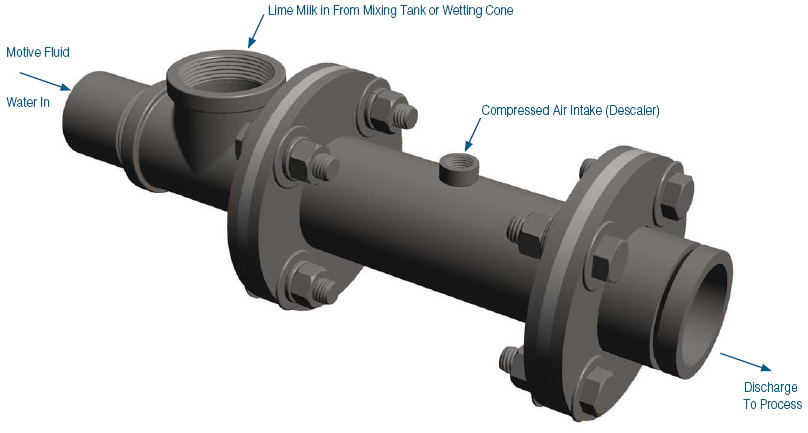

The Flexturi is an anti-clogging lime milk system designed to replace traditional distribution pumps. It is capable of distributing up to 10% solution concentration for a pre-treatment pH adjustment or used in post treatment to protect the distribution network. The Flexturiís self-cleaning flexible venturi section provides water treatment operators with a low cost, low maintenance solution to lime milk injection.

Characteristics

  • Pumping lime milk from process water at any hardness with a flexturi Jet-Pump
  • Self-cleaning venturi for unassisted lime scale removal
  • Extended pumping capacity
  • NSF 61 contact parts
  • Designed for hydrated lime injection

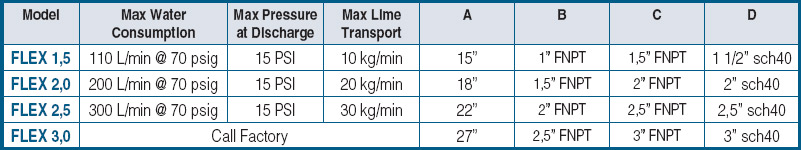

Process Capability and Requirements

Enlarged view

Documents

Flexturi
